Discovering the Zenith caliber 146 through a steely A271 chronograph
Mid-century chronographs are some of the most collectible models in all of vintage watches. References from Heuer, Rolex, and even Seiko have cult-like followings.
The reasons any collector is attracted to any particular watch are as plentiful as the number of watches in the world, but allow me to submit a hypothesis as to why these old chronographs are so popular. They’re the perfect blend of function and form (“everything you need, nothing you don’t,” as a more pedantic blogger espousing the virtues of Bauhaus might put it). Many of these beloved chronographs are simple designs: monochromatic, or perhaps a panda dial, with just a few sub dials to perform their necessary function of measuring time.
Further, these chronographs tug at the heart strings: they went to the moon, or at least drivers used them to time laps or something. All that history, squeezed into a few austere sub dials and a tachymeter.
Among the most revered and historically important of these chronographs is the Zenith El Primero A386, a chronograph with a claim to the title of the “world’s first automatic chronograph.” But Zenith’s journey to become a historically important chronograph maker began at least a decade earlier.
That’s why I was drawn to an earlier Zenith chronograph, the A271, powered by Zenith’s manual wind caliber 146.
This article serves as an introduction to the Zenith caliber 146 via my A271, but — as you’ll see — the caliber 146 powered an array of watches over its 30-plus year production run. If you’ve got a watch powered by the caliber 146 and want to tell its story, let us know.
Making (Martel) moves
Before we get back to the A271, we’re going to take a quick detour through Le Locle. I swear it’ll be worth it — like one of those mythical family road trip detours to see the world’s biggest ball of yarn — and it provides the preface to Zenith’s development of the El Primero movement.
Around 1960, Zenith acquired its longtime movement manufacturing partner, Martel. Martel Watch Co. was located in Le Locle, just a stone’s throw from Zenith and, at the time, Universal. In fact, Universal’s earliest chronographs used movements from Martel and the companies developed a partnership that lasted throughout the early part of the century.
The Martel-Universal partnership hit its stride in the 1930s, when Martel developed one of the first two-pusher chronograph calibers for wristwatches and jointly promoted it with Universal. In the 1930s and 40s, Universal also started using the “Compur” or “Compax” name for its chronographs. Martel introduced its manual wind chronograph caliber 749 in the early 1940s, which Universal used and signed as its caliber 285.
Zenith also started using this same Martel caliber 749, signing it as its caliber 146. It also adopted the “Compur” and Compax” branding, selling models that sometimes bear striking resemblance to their Universal counterparts. Some advertisements openly tout the collaboration between the two brands. Many Zenith watches from this period also have case and reference numbers in Universal Geneve format, rather than Zenith format, suggesting that Zenith obtained assembled watches from Universal (rather than just ebauche movements — but the discussion of these cases, in particular Jeanneret cases, must be left for another day). There was also probably some familial and/or corporate inbreeding between Zenith and Universal, but I’ll spare you those details too — we’ve got enough of that to deal with in our modern politics and boardrooms.

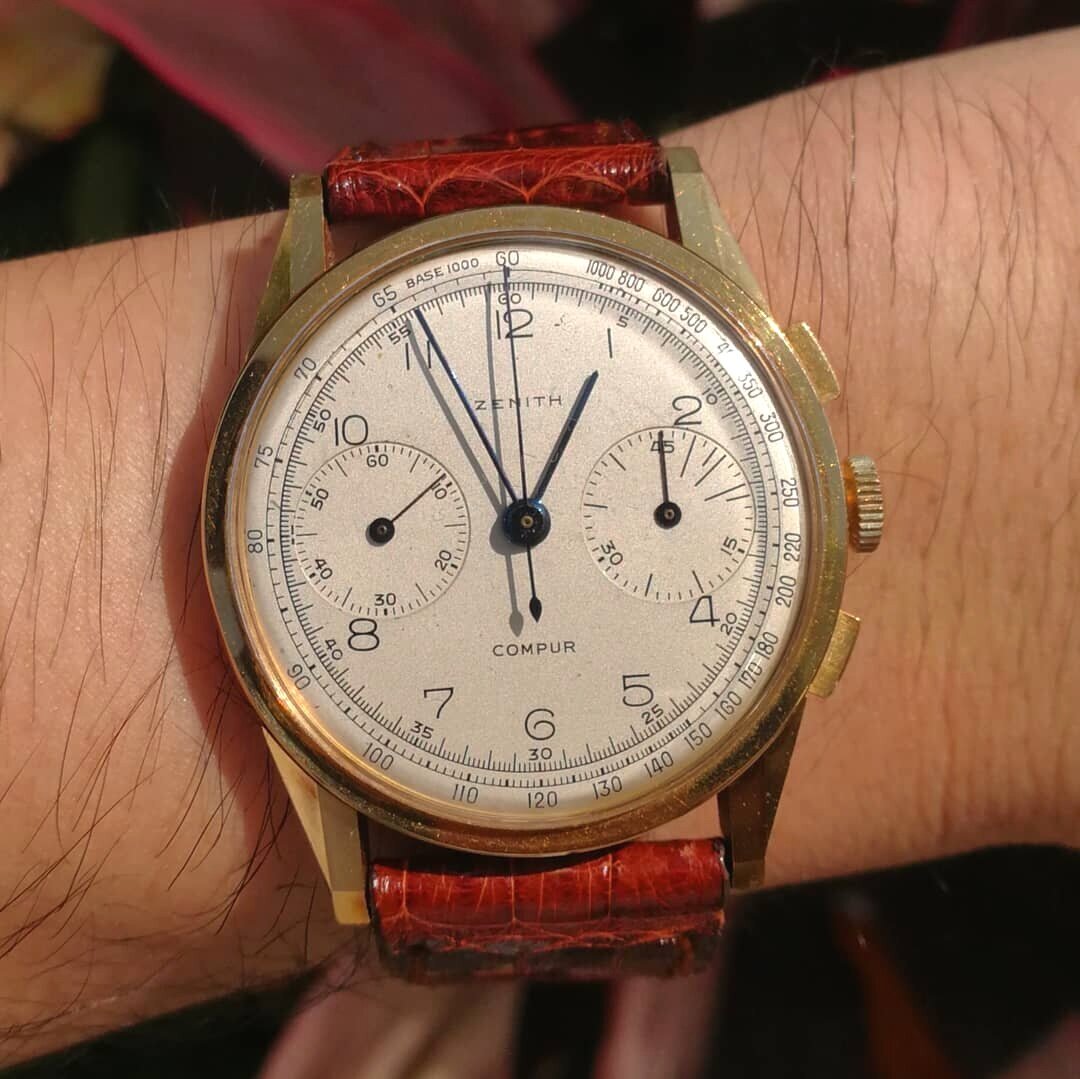

Zenith Compur with caliber 156 and Jeanneret case | @khmt2
Martel’s manufacturing of complicated chronographs reached its apogee in the 1940s, when it developed a chronograph caliber with full calendar and moonphase, or “Tricompax”. The movement can be found in both Universal and Zenith models from the era.
Fast-forwarding through a golden age of chronographs — particularly from Universal Geneve — we arrive at the 1950s, when Zenith began to use both Martel and Excelsior Park movements in its chronographs. During this time, in addition to continuing to manufacture chronograph movements, Martel also developed an automatic (rotor) movement.
By 1960, Zenith had outright acquired Martel, bringing its chronograph manufacturing capabilities in house. This meant production of the Zenith caliber 146 was also brought fully “in-house” for Zenith. It also brought Martel’s other manufacturing capabilities into the Zenith portfolio, including Martel’s production facility in Pont de Martel, Switzerland, which had been built with Universal Geneve in the 1940s. The El Primero movement was later developed in this very building. It’s also where long-time Martel employee Charles Vermot spent months defying companying orders by hiding equipment used in the production of the El Primero in the attic before the facility was shut down by Zenith Radio Corporation, which purchased the Swiss watch manufacturer in 1971.
In 1962, shortly after the Martel acquisition, Zenith announced that it had begun development of an automatic chronograph. While JFK was making bold proclamations that we’d put a man on the moon by the end of the decade, Zenith just wanted to use its newly acquired chronograph expertise to build the first automatic chronograph, which they eventually accomplished with the announcement of the El Primero in 1969.
It’s clear that Zenith would not have been able to accomplish this but for its acquisition of Martel and that company’s decades of expertise building world-class chronographs for both Zenith and Universal Geneve.
Yea, but how’s it run?
Zenith caliber 146 DP
By now, you might be thinking “that’s a nice story, but is the caliber 146 even a good movement?”
Quite simply: Hell yes.
First, it winds as crispy as fallen autumn leaves. But, the chronograph is just as smooth as the wind is crunchy. I don’t know how a movement first developed 80 years ago got it so right.
The Zenith caliber 146 (née Martel 749 or Universal 285) is not quite a movement, but a family of calibers. It was distinctive not only for its quality of construction, but also because it could be easily made in different sizes (from 13 to 16 lignes), with parts that could be interchanged between those sizes. Zenith would go on to name this family of calibers 136, 146, 156, and 166 with a “D” or “H” after the caliber indicating whether it was a two- or three-register model. (Universal had its own names for its production versions prior to Zenith acquiring Martel.)
The caliber 146 is a column wheel chronograph with Breguet hairspring. Additionally, you’ll find both 146H and 146HP movements: the 146HP has a flat coil, kif shock protection (instead of incabloc), as well as a different balance wheel and regulator.
You’ll find that both Zenith and Movado were using this same Martel-based movement as the engine for various chronographs during this period. For example, you can find the 146H or 146HP movement in Movado Super Sub Seas and their Zenith equivalents (not to be confused with Movado’s own M95 chronograph movement). In fact, in 1969, Zenith and Movado merged, forming the Mondia-Movado-Zenith holding company which would facilitate cooperation between the brands until 1984.
Zenith largely abandoned use of manual wind movements in its chronographs after the introduction of the automatic caliber 3019 in 1969, making the caliber 146 all the more interesting. The Zenith caliber 146 was used to power a variety of Zenith references until it was retired, including: A271, A273, A277, and A278. This range of references has a bit of something for everyone, from robust diver’s chronographs to understated models that embody minimalism.

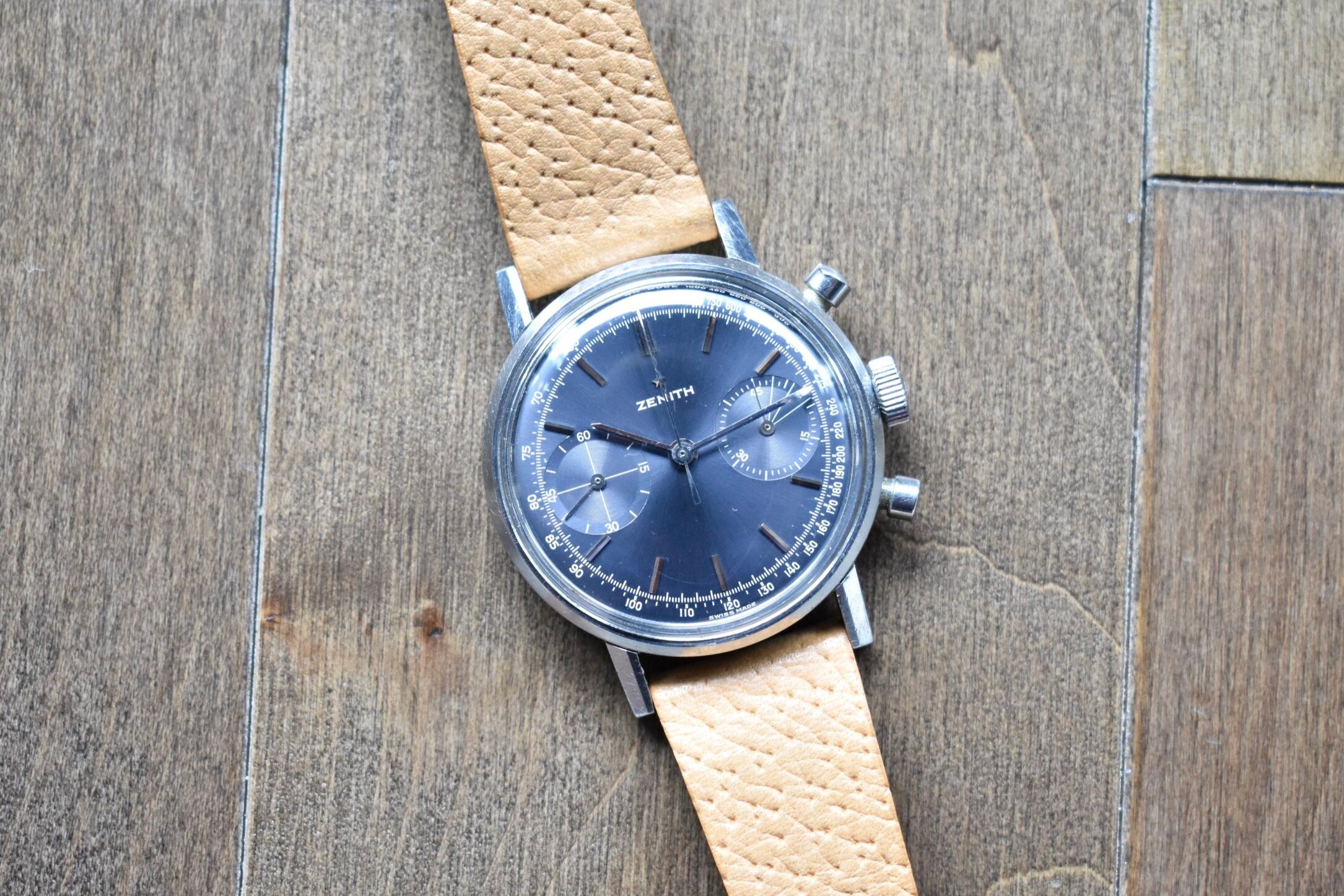

Zenith A271 with caliber 146 | Shuck the Oyster
Hit ‘em with the angles
Heuer Carrera reference 3647 | Ticktage
I’ve seen different measurements cited for the A271’s case, but it’s about 37mm in diameter and 11mm thick. Models with the larger caliber 156 come in at closer to 38mm.
The case of the A271 is extremely circular, almost giving it a bit of a “flying saucer” effect. This is accentuated by the squared, angular lugs that jut out abruptly from the case’s body.
Many competing chronographs of the era feature lugs that more gently curve off the case — even the notoriously angular lugs of the Heuer Carrera create a more curved case profile than that of the Zenith A271.
Altogether, this does make it feel a bit like you’re wearing a big half-dollar coin on your wrist.
One of my favorite features of the watch is its sharp angles and multi-faceted lugs. The lugs angle slightly to meet at a sharp point in the middle, and any lack of these sharp angles makes it particularly easy to distinguish between polished and unpolished examples of the A271. Like so many of these old stainless steel sports watches, the beauty lies in the original lines and angles of the case.
Feeling grey
A grey dial Zenith A271 with flaking around the sub dials | eBay

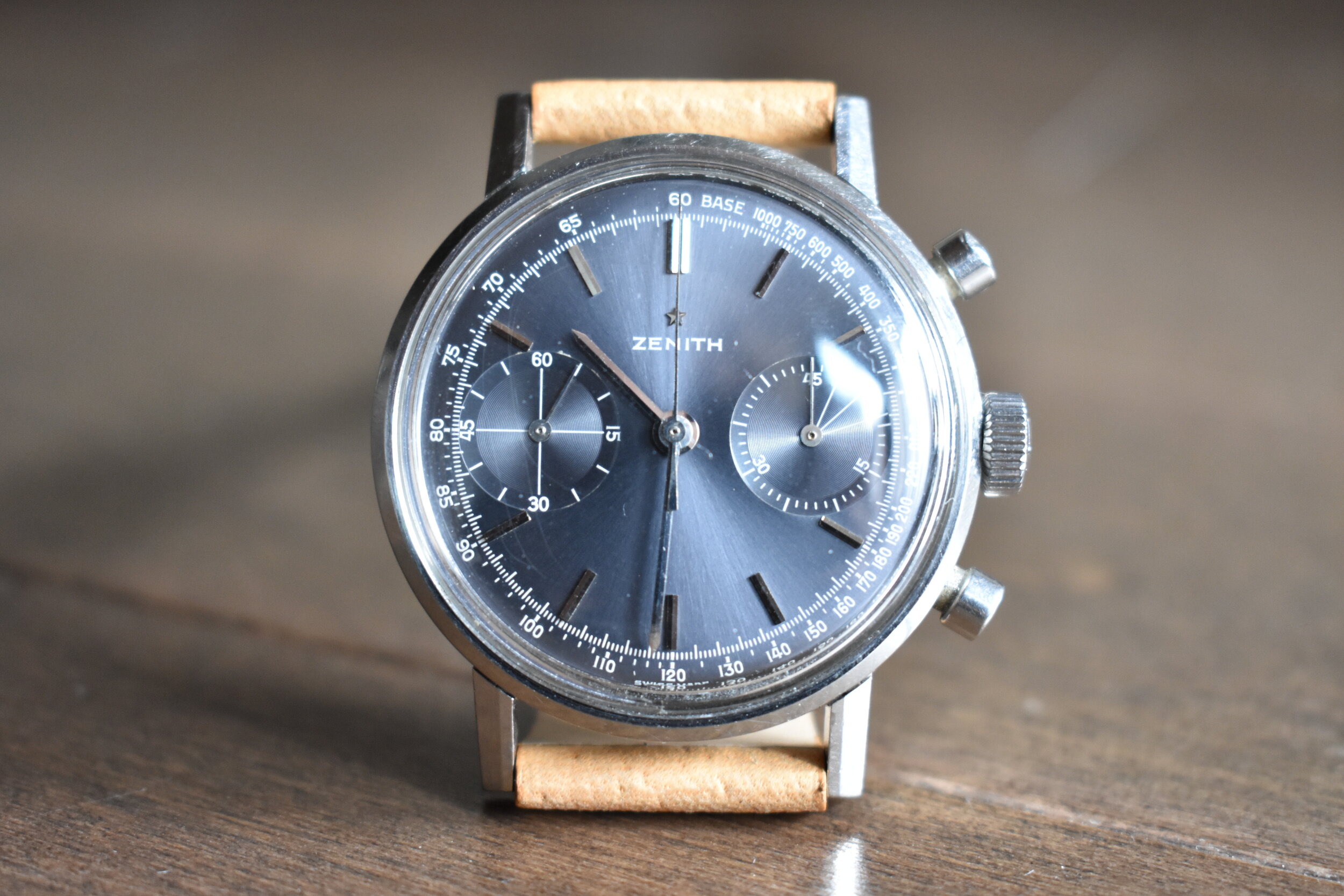

Now, to what attracted me to one particular Zenith A271: the dial. Most examples you’ll find have the typical silver sunburst dial. It’s a classic, clean look to be sure, but sometimes with vintage watches, you need a little something extra.
I’d spotted the slate grey-blue-slightly-purple dial (it catches the light so differently at different angles, I struggle to assign a color to it) examples before, but they’re certainly the most rare variant of the Zenith A271, along with the reverse panda version of this grey dial. Paired with the stainless steel case, the dial gives the entire watch a cool, steely feel.
What’s more, many of these steely grey dials seem to experience flaking, especially around the sunken sub dials (here and here, for example). I’ve seen some speculate that these dials may have been manufactured by the same company that produced the blue soleil Speemdaster dials. The dials certainly seem to share some common DNA; however, while many have come to believe that those Speedmaster dials are service replacements, there’s no such originality concern regarding these gorgeous Zenith dials.
The recessed sub dials on the A271 work especially will with the grey dial, helping to reflect light and color in seemingly infinite directions. It’s hard to capture in still images how light makes this dial dance. I’ve always preferred the two-sub dial chronograph layout, finding the simplicity and symmetry mesmerizing. Here, a simple cross hair sections off the running seconds sub dial, while the chronograph registers allows for 45 minutes of recording. On the chronograph register, there are also full lines at 3, 6 and 9 minutes, meant to help in timing long distance calls. A true anachronism of 1960s life.
Sharp, stainless steel indices and a finely printed white tachymeter finish off the dial. It’s a lesson in restraint, leaving as much space as possible for the grey dial to shine.
Bring it all together
Bring together Martel’s history as a superlative manufacturer of chronographs, Zenith’s expertise and business acumen to take Martel in house, throw in a beautifully well-executed, unique dial, and it all culminates in this Zenith A271. It’s the consummate “dress chronograph”, as I’ve come to think of it. It’s not water resistant and has no lume, making it ill-equipped to function as a real sports or tool watch.
But let’s focus on what it is: a chronograph stripped down to its core elements. A top-notch column wheel caliber, a sharp steel case with better angles than your favorite Instagram model, and that dial. It’s a chronograph for chronograph’s sake, and as the precursor to the El Primero, it’s hard not to appreciate exactly what that means.
Heritage 146: History lives on
Zenith Heritage 146 limited edition for Hodinkee
Of course, Zenith hasn’t let a vintage icon like the A271 whither in the archives. In 2016, Zenith partnered with Hodinkee to create a limited edition El Primero, with the dial being directly inspired by the grey dial A271. The case and movement of Hodinkee’s limited edition draw from the later El Primero line, and do well to modernize the grey dial. While the limited edition’s dial lacked some of the features I most appreciate in the vintage A271 — recessed sub dials, slight purple and blue tints in the color — it’s a modern re-interpretation still deserving of a hat tip.
Soon after the success of that Hodinkee limited edition, Zenith released its own version of the Heritage 146, in both a blue and brown dial variant. Like the Hodinkee collaboration, these dials draw on the original A271 for inspiration, while adding a distinctly modern interpretation. It’s encouraging to see Zenith acknowledging their history while still pushing itself forward as a brand.
Additional reading: This is a great thread with primary sources and other documents detailing the intertwined history of Universal Geneve, Zenith, and Martel.
